Heaters

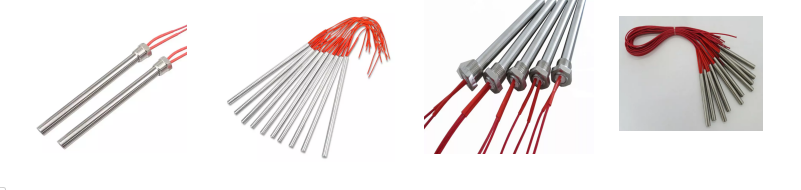

Cartridge Heaters

Diameter	3 mm - 30 mm or customized
Voltage	12V - 480V or customized
Power	As per the customer requirement
Thermocouple	J/K
Wattage	Low/Middle/High
Sheath Material	SS304/310/316/Inconel600/800/Incoloy800
Power	As per the customer requirement

Sheath Material Operating Temperatures

Copper	180 Degree Celsius / 360 Degree Fahrenheit
Steel	400 Degree Celsius / 750 Degree Fahrenheit
SS304-316	650 Degree Celsius / 1200 Degree Fahrenheit
Incoloy	815 Degree Celsius / 1500 Degree Fahrenheit

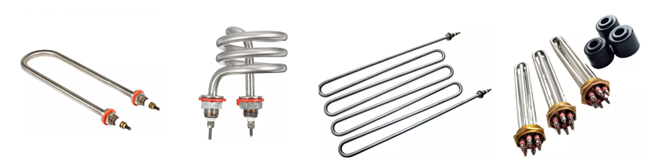

Tabular Heaters

Sheath Material Operating Temperatures

Shapes & Designs: Straight / Bent / Flanges / Customized

Voltage: 12V - 480V or as per customer reqirements

Power: 100W - 10000W or as per customer requirements

Suitable Applications: Air / Liquid [Corrosive / Non-Corrosive] / Surface

Copper	180 Degree Celsius / 360 Degree Fahrenheit
Steel	400 Degree Celsius / 750 Degree Fahrenheit
SS304-316	650 Degree Celsius / 1200 Degree Fahrenheit
Incoloy	815 Degree Celsius / 1500 Degree Fahrenheit

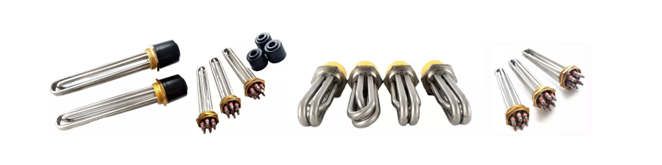

Immersion Heaters

Sheath Material Operating Temperatures

Shapes & Designs: Straight / Bent / Flanges / Customized

Voltage: 12V - 480V or as per customer reqirements

Power: 100W - 10000W or as per customer requirements

Suitable Applications: Air / Liquid [Corrosive / Non-Corrosive] / Surface

Copper	180 Degree Celsius / 360 Degree Fahrenheit
Steel	400 Degree Celsius / 750 Degree Fahrenheit
SS304-316	650 Degree Celsius / 1200 Degree Fahrenheit
Incoloy	815 Degree Celsius / 1500 Degree Fahrenheit

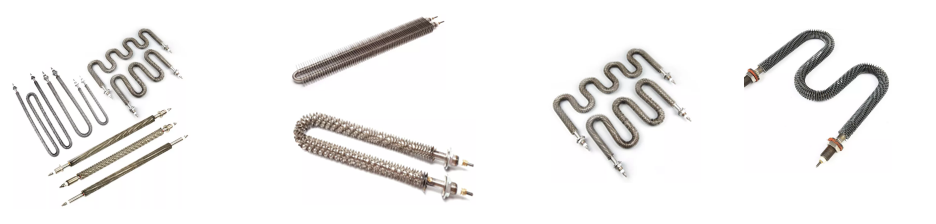

Finned Heaters

Sheath Material Operating Temperatures

Shapes & Designs: Straight / Bent / Flanged / Fin Tubed / W or U Shaped / Customized

Voltage: 12V - 480V or as per customer reqirements

Power: 100W - 10000W or as per customer requirements

Threads: M12 M14  M16 M18

Suitable Applications: Drying,Heat Treating,Annealing,Load Banks,Curing

Copper	180 Degree Celsius / 360 Degree Fahrenheit
Steel	400 Degree Celsius / 750 Degree Fahrenheit
SS304-316	650 Degree Celsius / 1200 Degree Fahrenheit
Incoloy	815 Degree Celsius / 1500 Degree Fahrenheit

Immersion Heaters

Sheath Material Operating Temperatures

Shapes & Designs: Straight / Bent / Flanges / Customized

Voltage: 12V - 480V or as per customer reqirements

Power: 100W - 10000W or as per customer requirements

Suitable Applications: Air / Liquid [Corrosive / Non-Corrosive] / Surface

Copper	180 Degree Celsius / 360 Degree Fahrenheit
Steel	400 Degree Celsius / 750 Degree Fahrenheit
SS304-316	650 Degree Celsius / 1200 Degree Fahrenheit
Incoloy	815 Degree Celsius / 1500 Degree Fahrenheit

Bobbin Heaters / Porcelain Heaters

Bobbin Heaters / Porcelain Heaters

Type	Ceramic Bobbin Heater
Insulation	High Alumina Ceramic
Alloy	NiCr [Nickel-Chromium] 80/20
Heating	Evenly Distributed
Heating	Evenly Distributed
Temperature Range	1200-1400 Degree Celsius
Corrosion Resistivity	Yes
Life	Long Life, 1-3+ Years
Power	2KW-10KW+ or as per customer requirement
Size	Available as per requirement / customized
Voltage	12V - 480V or as per customer requirements
Voltage	12V - 480V or as per customer requirements
Customization	Yes, Highly Customizable
