Cartridge Heaters


Cartridge Heaters


High Density Cartridge Heaters is manufactured using the best materials and construction methods. Extensive Quality & Testing throughout the production process assures the continuous and superior performance of the heaters.

The swaged assembly produces a highly compacted heater that will have the ability for maximum element life & uniform heat transfer. These heaters last up to 10 times longer than normal un-compacted cartridge heaters.

Special Features:

  • OUTER SHEATH:- INCOLY/INCONEL 600/SS 310/SS 321/SS316/BRASS.
  • RESISTANCE WIRE:- NICHROME 80/20
  • PINS:- 100 % PURE NICKEL.
  • INSULATION:MGO
  • SEALING:CEMENT/SILICON/TEFLON.
  • LEAD WIRES:TEFLON/SS BRAIDED/FIBRE GLASS INSULATED.

HIGH DENSITY CARTRIDGE HEATERS

Cartridge heater compacted by magnesium oxide offers high performance. With a maximum rating Wattage upto 70 Watts/Square inch & Temperature up to 7500degree centigrade on the sheath of the heater.

Power distribution & Inbuilt Thermocouple options are available.

Features:

  • Standard Diameters :- 6.5,8,9.5,10,12.5,16,19,20,22,25mm.
  • Tolerance in Diameter :- -0.05mm.
  • Length :- 30mm-1500mm.
  • Tolerance in Length :- 0c 1.5%.
  • Min Max Voltage :- 480V.
  • Wattage tolerance :- 0c10%.

Application:

  • Liquid Immersion.
  • Plastic Molds
  • Dies
  • Labeling
  • Medical Equipment.
  • Packaging Equipment.
  • Hot Stamping.
  • Sealing.
  • Injection Molding.
  • Hot Runner.

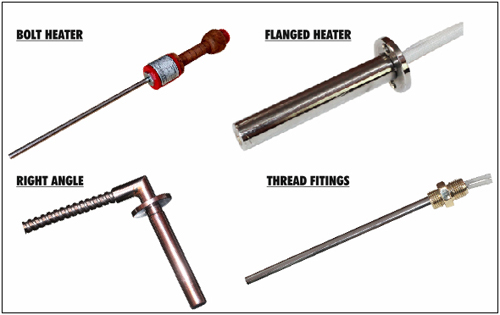

TYPES OF CARTRIDGE HEATERS

CARTRIDGE HEATER

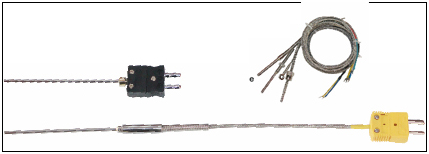

TEMPERATURE SENSORS

Temperature Sensors used for measuring and controlling of various Heaters & Equipment's like moulds, tools, ovens, furnace, etc

  • TYPES OF THERMOCOUPLES:- K/J/T/E/N/R/S/B-TYPES..
  • TYPES OF RTDS:- PT-50,PT-100,PT-200,PT-500,PT-1000
  • TEMPERATURE RANGE:- -200 TO +1800 Degree Centigrade.

CARTRIDGE HEATER

CARTRIDGE HEATER
